50M Cell Phone Radios Monopole Tower

Product Name: Telecom Monopole

Main Material: Q235B/Q355B/Q420B

Surface Treatment: Hot dip-galvanized

Joint of Poles: Insert mode,inner flange mode,face to face joint mode

Certificates: GB/T19001-2016/ISO 9001:2015

Work Life: More than 30years


Product Detail

Video

Product Tags

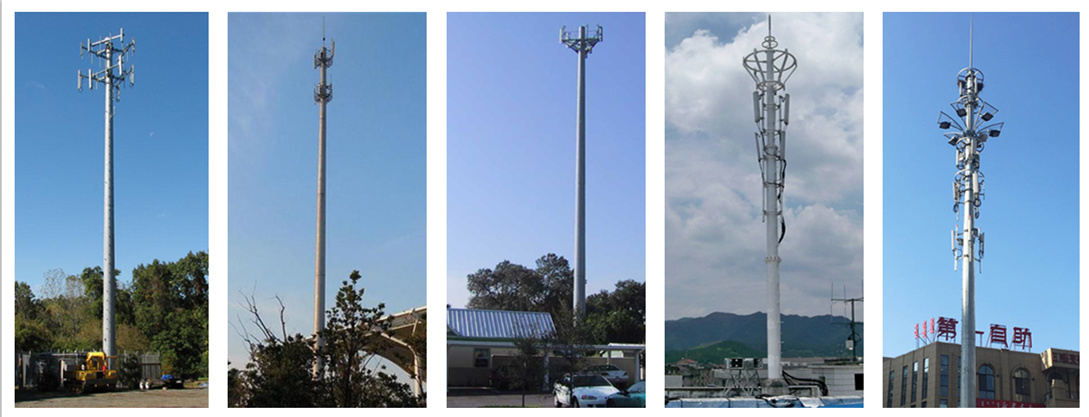

Monopole Towers

Monopoles are one of the least intrusive and easiest communication towers to erect.  This fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.  As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe capacity issues on their networks.  While new technology and better wireless antennas can help, the best solution is to add additional towers.  However, adding towers in urban areas has become difficult in recent years as more stringent zoning laws and lack of available land make the process longer and more expensive.  Due to monopoles and concealed monopoles (pine poles, flag poles, palm poles, etc…) requiring smaller footprints and being more aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas

For power telecom towers in various situations, you are welcome to come for customized consultation, professional design team and one-stop service are provided!

We need customers to provide the following basic parameters: wind speed, height,antenna number, antenna area
monopole towers

ITEM SPECIFICS

Product Name Telecom Steel Tower
Raw Material Q235B/Q355B/Q420B
Surface Treatment Hot dip galvanized
Galvanized Thickness Average layer thickness 86um
Painting Customized
Bolts 4.8;6.8;8.8
Certificate GB/T19001-2016/ISO 9001:2015
Lifetime More than 30 years
Manufacturing Standard GB/T2694-2018
Galvanizing Standard ISO1461
Raw Material Standards GB/T700-2006, ISO630-1995, GB/T1591-2018;GB/T706-2016;
Fastener Standard GB/T5782-2000. ISO4014-1999
Welding Standard AWS D1.1
EU Standard CE : EN10025
American Standard ASTM A6-2014
Keywords Telecom Monopole ,Monopole Cell Tower,Wifi Tower,Tube Tower,Steel Pole Tower,Tubular Steel Tower,Tube Telecom Tower,5g Telecom Tower

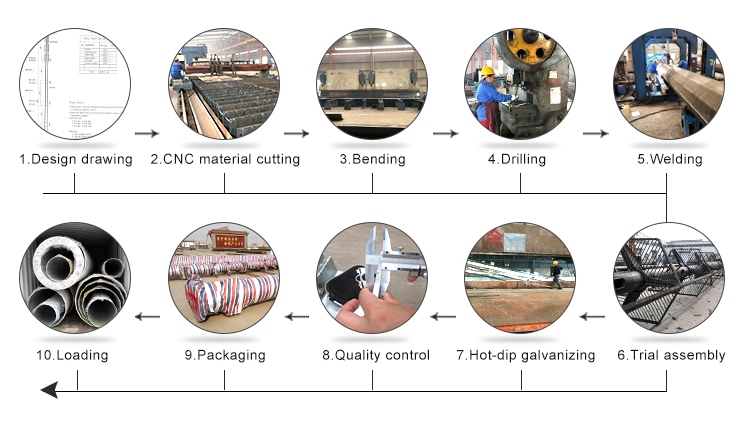

PRODUCTION FLOW



H87537470cc7f448da3f9965804996a3bp

MONOPOLE ADVANTAGES

1.Small tower footprint and foundation

2.Fast and easy to erect

3.Aesthetically pleasing

4.Versatile for different loading applications



PACKING DETAILS

After Galvanization,we start to package,Every piece of our products is coded according to the detail drawing. Every code will be put a steel seal on each piece. According to the code, clients will clearly know a single piece belong to which type and segments.

All the pieces are properly numbered and packaged through the drawing which could guarantee no single piece missing and easily to be installed.

微信图片_202112071418501_副本_副本

Warmly Welcome To Contact US!



We provide the most professional one-stop steel tower service for Overseas export,specializing in power transmission line tower production, telecommunication tower production,
substation steel structure Works.

⦁ All kinds of telecom tower customized design can be provided

⦁ Own professional design team for overseas steel towers projects



H3b83a8a6e2ac4513896a39f11ef8dc52k
