Pulling Type 2x100kN Tensioner performance/structure parameter
|
max intermittent tension |
2x100kN or 1x200kN |
max continuous tension |
2x80kN or 1x160kN |
correspond speed |
2.5km/h
|
max continuous stringing speed |
5km/h
|
corresponding tension
|
2x40kN or 1x80kN
|
max reverse pulling force |
70kN
|
max reverse pulling speed
|
3km/h |
tension wheel diameter |
1850mm |
groove number |
6 |
max diameter of applicable conductor |
48.75mm |
electric system |
24v |
hydraulic power output |
rapid connection with hydraulic conductor |
total weight |
9800kg |
overall dimension(length x width x height) |
5200 x 2300 x 2950mm |
engine |
Sino-USA commins 1300hp/2500rpm |
hydraulic pump |
German Rexroth |
hydraulic motor
|
German Rexroth |
speed reducer |
Italian RR |
main hydraulic valve |
USA sun & Italian ATOS |

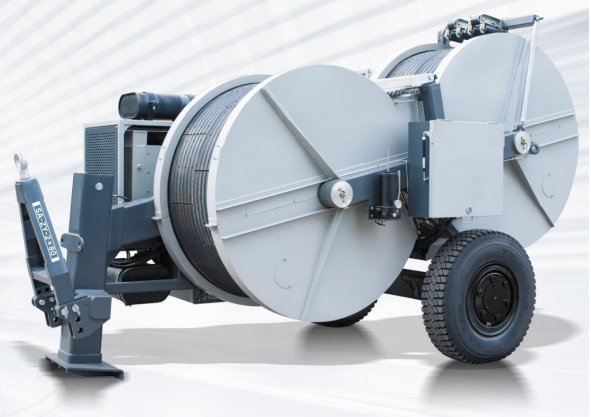

Application of SA-ZY -2×80kN tensioner:
This machine is used to string double conductors with max diameter of 48.75mm(max sectional
area of 1520mm2) over giant span such as valley,great river,hills and flat area.With bull wheel
diameter of 1850mm,this machine is designed to construct the UHV transmission project
Technical Features:
The main stander is made by customized rectangularsteel tubes which are formed by one take art,to avoid any deformation which cause the mechanical parts.
The bull-wheel grooves are made up of high resistance interchangeable nylon sectors Hydraulic power pack to drive 2 drum stands with hydraulic motors
Apart from as a tensioner, it could be used as puller by its pull back funciton.
Working parameters of the machine,including the length of stringing could be seen directly on digital meter counter.
Single axle chassis with rigid axle for up to 30 km/h
Automatical Hydraulic oil cooling system
Hydraulic front plough
Grounding connection point and temporay anchor point
Two pair of bull wheels could be connected or disconnected by a special device.
Configurations Features:
Commins Engine which are reliable, parts and service station easy access all overthe world;its poweris higher than other manufactures products.
Main partsin hydralic system are from German Rexroth,such as pump\motor\speed reducer,other parts such as pull meter\winder motor\valves\switches are also come from famous international brand.
