330kV Y-type Anle Steel Transmission Tower

Tower Type: Angle Steel Tower

Voltage: 33kv, 66kv, 110kv, 115kv, 132kv, 220kv, 320kv, 500kv

Material: Q235, Q355, Q420

Welding: AWS D1.1

Hot dip galvanizing: ASTM A123

Certificate: GB/T19001-2016/ISO 9001:2015

Application: Electric Power Transmission Line


Product Detail

Product Tags

company

What We Do

⦁  a Chinese integrated electrical power company, mainly offers various electrical products to domestic and oversea energy utility companies and high-energy-usage industrial customers.

⦁  Specialize manufacturer in the field of transmission line tower/pole for electricity transmission and distribution, telecommunication tower/pole, substation structure, and steel fittings etc. also a significant shareholder of a transformer manufacturer, silicon steel sheet manufacturer and a power station.

Our Vision
  • ⦁  To be EFFECTIVE in performing our duties and providing services to internal and external customers.
  • ⦁  To be EFFICIENT in handling our duties and services to achieve maximum result in shortest possible time.

our core services and products comprise of:

electric power tower

telecom tower

electric substation structure

electrical tower

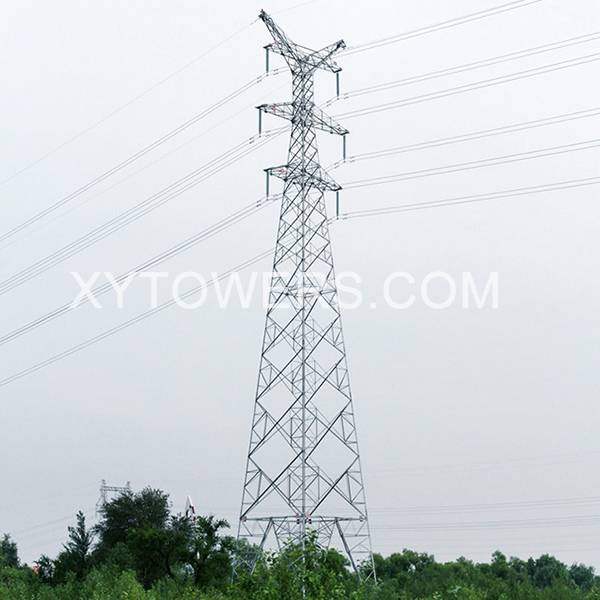

330KV Y-Frame steel tower

Similar to delta tower but there is no horizontal cross-beam between the two top structures (cross-beams at the joint or further down is possible). The middle conductor is supported directly by the top structures. It looks like character "Y", and when installed, the structure angles outward, and creates a Y shape, which is also one type steel lattice power tower, apparently carrying 330KV, even higher voltage power transmission line, are used in high voltage AC and DC power transmission line systems as well as railway traction, and come in a wide variety of shapes and sizes.

XYTOWER fabricates every type 330KV Y-Frame steel tower by solid steel legs and angle iron cross members & pipes or only with angle steel bar material. Structures can reach heights up to 200 meter, even higher as per client requirements. XYTOWER is one of the few manufactures who assemble a face of every tower section. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. All tower material adopt Chinese steel or international equivalent material such as Q235B, Q355B, etc.

product information

 Material Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.
 Power Capacity  330KV
Welding Welding complies with AWS D1.1 standard.
CO2 welding or submerged arc auto methods
No fissure, scar, overlap, layer or other defects
Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment as your request
Galvanization Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123; or any other standard by client required.
Joint Joint with insert mode, flange mode.
Painting According to clients’ request
keywords transmission tower,electric tower,electric transmission towers,electrical power tower,steel lattice towers,high tension tower,high voltage electric tower,high voltage tower,high voltage transmission line tower,iron tower

Package and Shipment

PACKAGE
